Wiring for two single coils with 1 volume, 1 tone, on a 3-way selector switch. Free to download and print. Used by 19 Guitar Kit World kits, listed on the page.
This diagram covers this pickup layout, running through 1 volume, 1 tone, a 3-way switch.

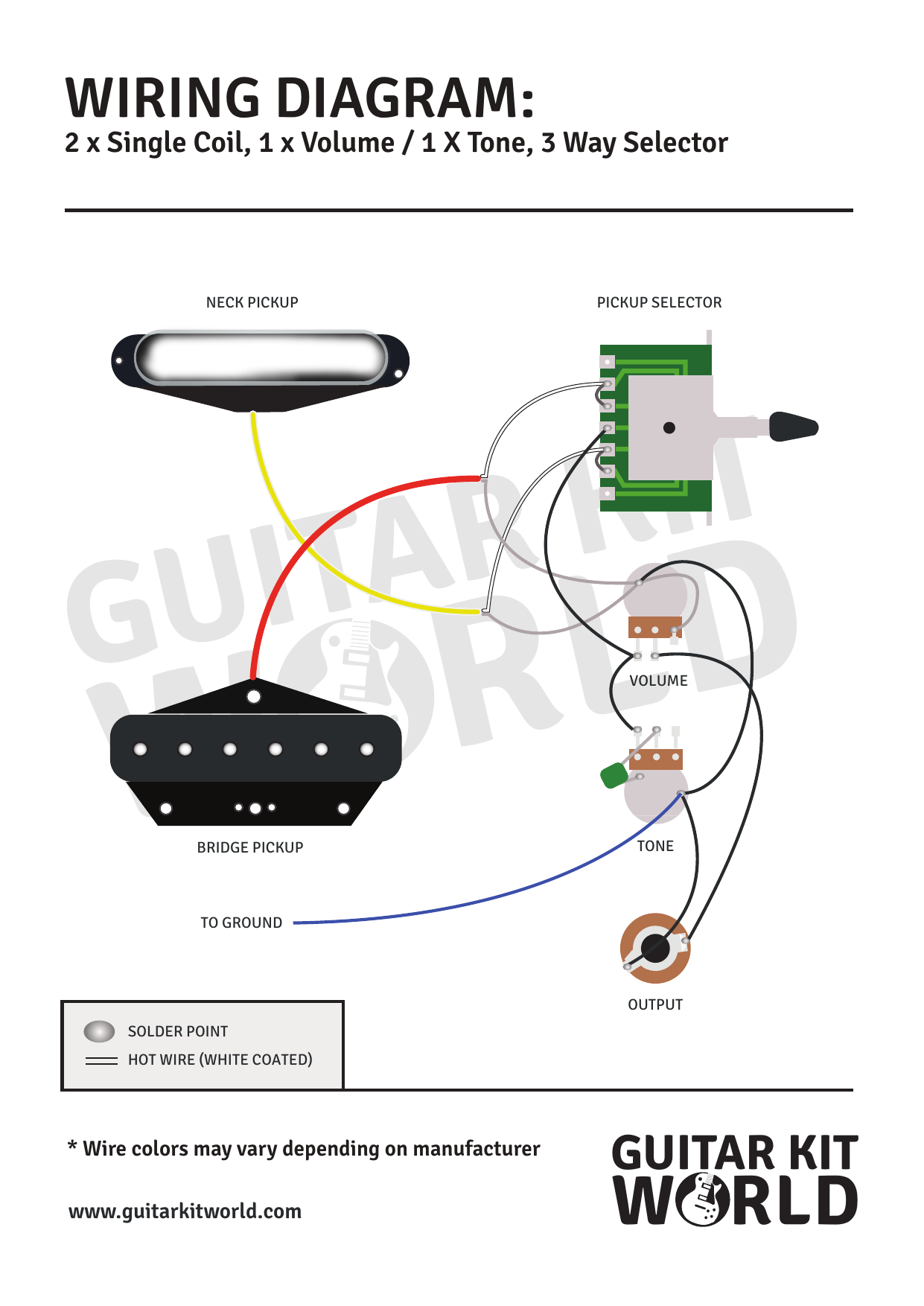

2x Single Coil Wiring Diagram: 1 Volume, 1 Tone, 3-Way Selector. Click to open full size.
If your kit is not on this list, count the knobs and switch positions on your own control cavity before you solder anything. A different control count needs a different diagram.
Before you start
Wire colors change between production batches. Match by position, not by color.
All grounds run to the bridge ground, as marked on the diagram.
Check continuity with a multimeter before you string the guitar up.
Tin your wire ends and the pot backs first. It makes every joint after that easier.
Cannot find a diagram for your kit? We will draw one for you
If you are building a Guitar Kit World kit, you will get a wiring diagram. Every time. If nothing in our library matches your electronics, send us photos of your control cavity, your pickups and your switch, and we will draw a diagram specific to your build.
Clear, well lit photos get a faster answer. We need to see the back of the pots, the switch terminals, and the wires coming out of each pickup.
Building a kit from somewhere else? Our builder community wiring section is open to everyone, whether you bought from us or not.
Need help with this wiring?
Our builder community has a thread for this diagram where you can post a photo of your control cavity and get an answer. Ask about this wiring in the community.
