Wiring for a humbucker and two single coils with 1 volume, 2 tone, on a 5-way selector switch. Free to download and print. Used by 2 Guitar Kit World kits, listed on the page.

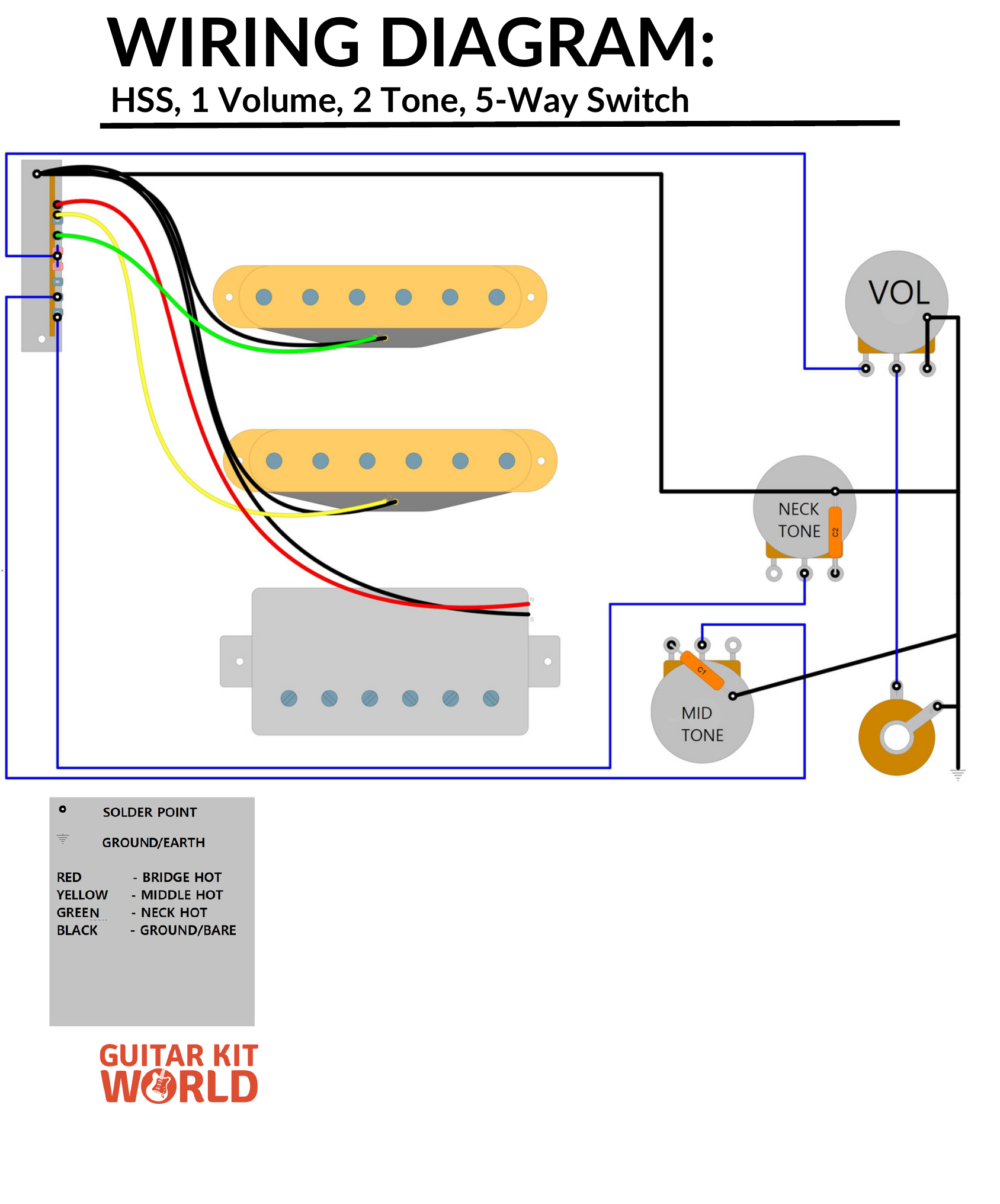

This diagram covers a humbucker at the bridge and a single coil at the middle and a single coil at the neck, running through 1 volume, 2 tone, a 5-way switch.
(Right-click and choose "Save As" if it opens in your browser.)
| Pickups | 3: humbucker (bridge), single coil (middle), single coil (neck) |
|---|---|
| Controls | 1 volume, 2 tone |
| Switch | 5-way selector switch |
| Output | Mono output jack |
| Grounding | All grounds to bridge ground |
| Switch position | What you get |
|---|---|
| 1 (toward the bridge) | Humbuckerlead, rhythm with bite |
| 2 | Humbucker and Single coilthinner, funkier |
| 3 (centre) | Single coilclean rhythm |
| 4 | Single coil and Single coilwarm, hollow |
| 5 (toward the neck) | Single coilwarm lead, jazz |
If your kit is not on this list, count the knobs and switch positions on your own control cavity before you solder anything. A different control count needs a different diagram.
