Wiring for two bass soapbar pickups with 2 volume, 1 tone. Free to download and print. Match it to your own control cavity before you solder.

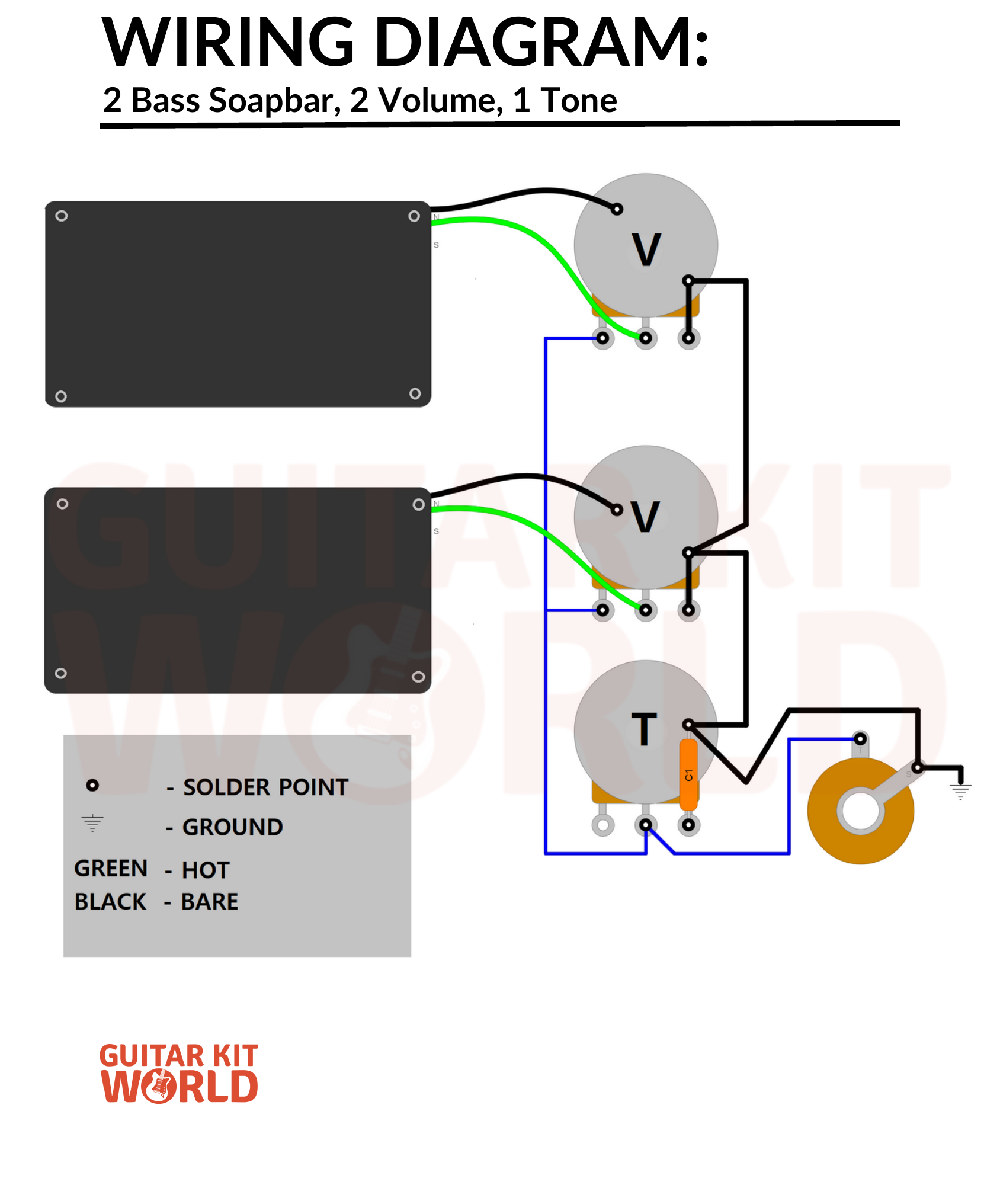

This diagram covers this pickup layout, running through 2 volume, 1 tone.
(Right-click and choose "Save As" if it opens in your browser.)
| Controls | 2 volume, 1 tone |
|---|---|
| Output | Mono output jack |
| Grounding | All grounds to bridge ground |
We are still confirming which kits ship with this exact layout. If you are building one of our kits and this diagram matches your electronics, tell us and we will add it here. Count the knobs and switch positions on your own control cavity before you solder anything.
If you are building a Guitar Kit World kit, you will get a wiring diagram. Every time. If nothing in our library matches your electronics, send us photos of your control cavity, your pickups and your switch, and we will draw a diagram specific to your build.
Send your photos to support@guitarkitworld.com with your order number or kit SKU.
Clear, well lit photos get a faster answer. We need to see the back of the pots, the switch terminals, and the wires coming out of each pickup.
Building a kit from somewhere else? Our builder community wiring section is open to everyone, whether you bought from us or not.
Our builder community has a thread for this diagram where you can post a photo of your control cavity and get an answer. Ask about this wiring in the community.
New to soldering? Start with our guide to electric guitar wiring for kit guitars, or browse the full wiring diagram library.
