Piezo Pickup Wiring Diagram: 1 Volume, 4-Band Equalizer

· · 2 min read

Wiring for a piezo pickup with 1 volume. Free to download and print. Used by 2 Guitar Kit World kits, listed on the page.

This diagram covers this pickup layout, running through 1 volume.

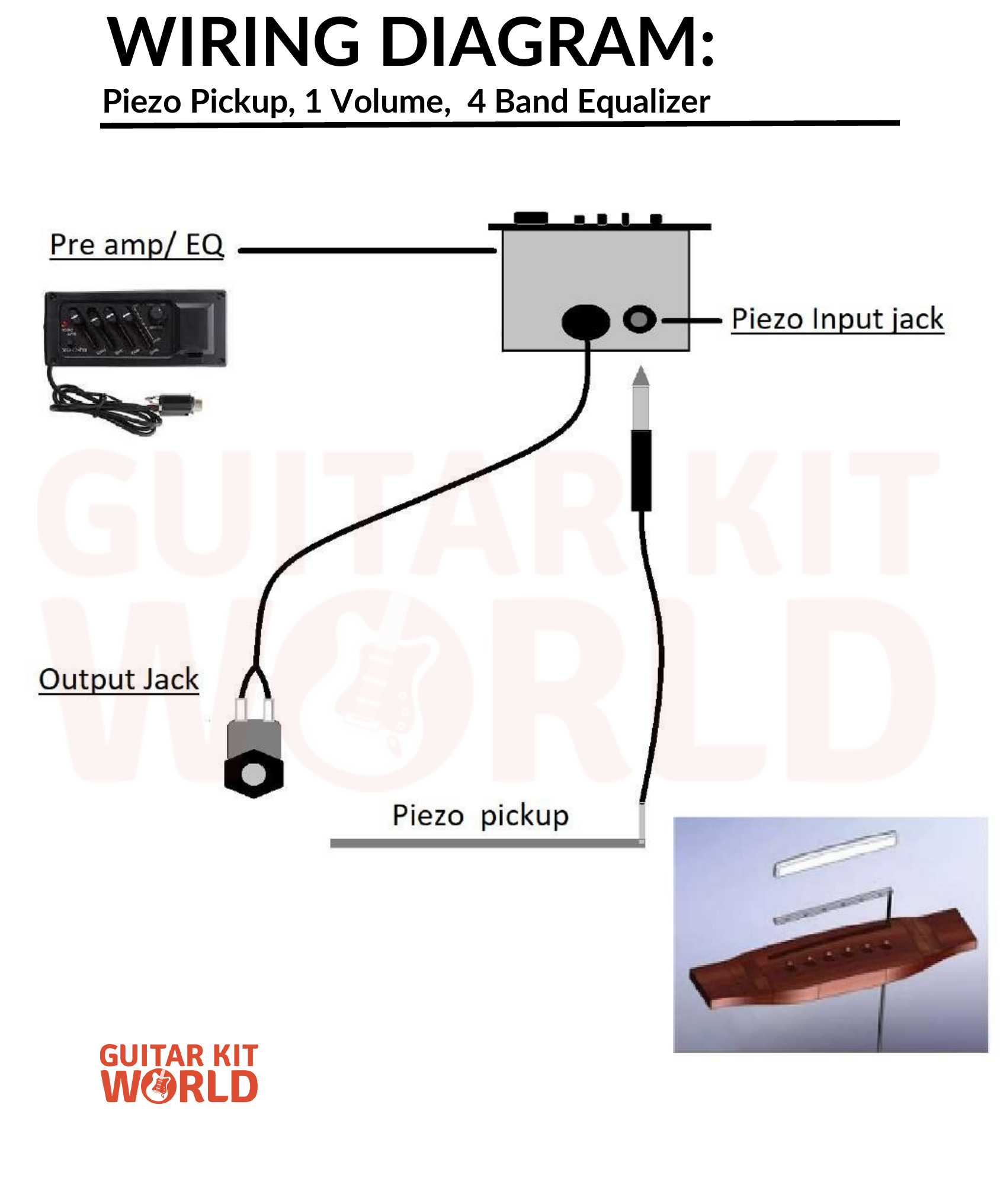

Piezo Pickup Wiring Diagram: 1 Volume, 4-Band Equalizer for DIY guitar kits
Piezo Pickup Wiring Diagram: 1 Volume, 4-Band Equalizer. Click to open full size.

Download this wiring diagram

(Right-click and choose "Save As" if it opens in your browser.)

What this diagram covers

Controls 1 volume
Output Mono output jack
Connections Piezo to preamp input jack, preamp to output jack

Guitar Kit World kits that use this wiring

If your kit is not on this list, count the knobs and switch positions on your own control cavity before you wire anything. A different control count needs a different diagram.

Before you start

  • Both kits on this list are solderless. Every lead is already fitted with its connector, so you are plugging parts together, not making joints.
  • Match connections by position as drawn, not by wire color. Wire colors change between production batches.
  • Route the leads clear of the saddle slot and the cavity cover before you close it up.
  • A piezo only makes a signal under string pressure, so test through an amp once the guitar is strung, before you refit the cover.

Cannot find a diagram for your kit? We will draw one for you

If you are building a Guitar Kit World kit, you will get a wiring diagram. Every time. If nothing in our library matches your electronics, send us photos of your control cavity, your pickups and your switch, and we will draw a diagram specific to your build.

Send your photos to support@guitarkitworld.com with your order number or kit SKU.

Clear, well lit photos get a faster answer. We need to see the back of the pots, the switch terminals, and the wires coming out of each pickup.

Building a kit from somewhere else? Our builder community wiring section is open to everyone, whether you bought from us or not.

Need help with this wiring?

Our builder community has a thread for this diagram where you can post a photo of your control cavity and get an answer. Ask about this wiring in the community.

New to guitar electronics? Start with our guide to electric guitar wiring for kit guitars, or browse the full wiring diagram library.
