Acoustic Electric Guitar Kit With Equalizer Assembly Manual

This guide provides step-by-step instructions to build your Acoustic Electric DIY guitar kit, equipped with a 4-band EQ and piezo pickup.

This guide walks you through every step from prepping your body to final setup.

Project Toolbox

Tools & Consumables

  • Screwdrivers (Phillips)
  • Disposable gloves
  • Titebond, PVA, or similar wood glue (*set neck guitar
  • Small paintbrush
  • Wood grain filler (If open grain timber such as Mahogany or Oak)
  • Sandpaper. Various grades, from 120 up to 1500 (*depends on finish)
  • Finishing supplies. (This depends on your choice of finish)
  • Painters masking tape
  • Assortment of clean rags and paper towel
  • Denatured alcohol (or cleaning product with degreasing ability)
  • 0000 fine grade steel wool
  • Solder (and sponge for cleaning tip of iron)
  • Container for storing finishing supplies.

Recommended Tools Guide: Luthier Tools for DIY Guitar Kits

Parts List (Included in Kit)

Every kit includes:

  • Semi-hollow guitar body (T-style or S-style)
  • Bolt-on neck with blank headstock
  • 6 inline tuning machines (with bushings and washers)
  • Wooden acoustic-style bridge
  • Saddle
  • Piezo pickup
  • Pre-wired 4-band EQ with integrated 9V battery box
  • Output jack
  • 1 x Volume knob (pre-wired)
  • Neck plate with 4 screws
  • Strap buttons with screws
  • Allen wrench (truss rod)
  • Mounting screws
  • Set of acoustic guitar strings
  • 1/4” instrument cable

Semi-Hollow Body T-style Guitar with Equalizer - Guitar Kit World

    Safety Precautions

    To complete your guitar kit safely, also ensure you have the following on hand, and a well ventilated work space to work in.

    Protective eyewear

    Use protective safety glasses or a genuine face shield, not regular prescription, reading, or sunglasses.

    Disposable gloves

    Use disposable gloves if applying stains or oil finishes directly to the guitar.

    Masks

    Use an N95 rated dust mask for sanding and an R95 rated particle mask for finishing. If using water based finishing products an N95 dust mask may suffice for both sanding and finishing, but be sure to check the finishing suppliers recommendations first. Paint fumes are dangerous.

    A well ventilated work area

    Ensure your work space is well ventilated, especially when finishing to prevent a build up of potentially toxic fumes

    Making your Guitar Kit play and sound great

    There are four stages to building a great kit guitar, these are:

    1. Preparation and Finishing

    The finished surface appearance of your guitar e.g. staining, painting, or applying a hand rubbed oil finish.

    2. Hardware Installation

    Fitting the tuners, strap buttons, bridge, and pickups.

    3. Connecting the Electronics

    Connecting the pickups to the input jack, and incorporating a pickup selector and volume and tone potentiometers.

    4. Final Setup

    Adjusting the neck relief, action, intonation and pickup height

    We’ll cover each of these below, starting with preparation and finishing.

    Step 1: Preparation & Finishing

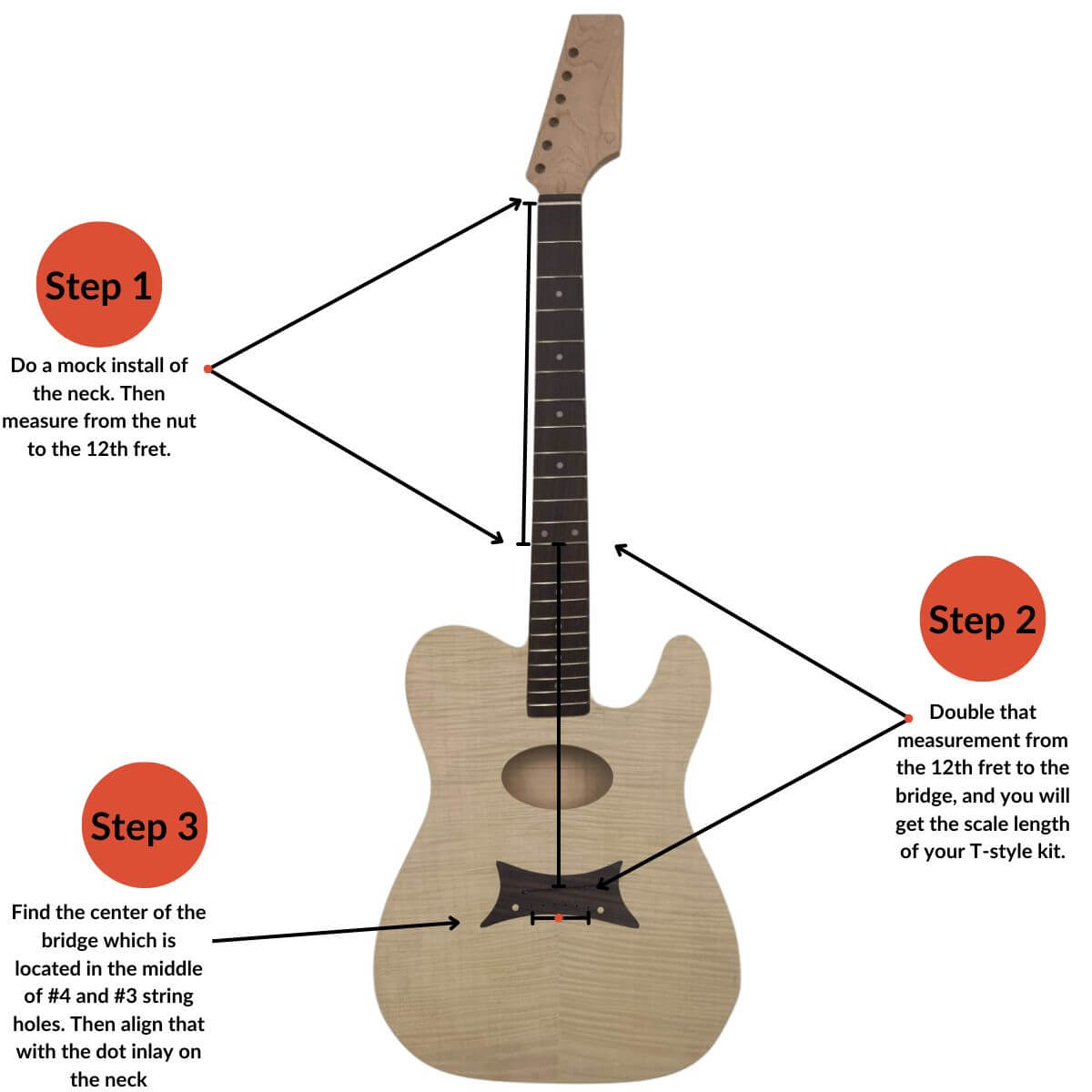

    Mock install the neck to check neck fit. Align it in the pocket and ensure it’s straight and snug. Use a steel ruler to measure from the nut to the 12th fret, then double that distance. This is your scale length (~25.5”). Mark the centerline and bridge position — center should fall between string holes 3 & 4 on the bridge.

    Steps:

    1. Measure from the nut to the center of the 12th fret.
    2. Double that distance — this is your scale length (typically ~25.5”).
    3. Align the bridge’s center (between string holes #3 and #4) with this measurement.

    See reference image for visual guide.

    Use the dot inlay on the neck as a vertical guide for bridge centerline alignment.

    Push the neck into the pocket and ensure snug fit.

    Headstock Shaping (Optional – Do This Before Finishing)

    If your kit comes with a blank headstock, you can create your own custom shape.

    • Sketch your design on paper first, then trace it onto the headstock.
    • Cut the shape using a coping saw, jigsaw, or bandsaw.
    • Sand the edges smooth and leave at least 15mm of wood around each tuner hole

    Once shaped, move on to sanding and finishing the neck.

    Finishing

    Before starting, it’s important to properly sand, clean, and finish your guitar body and neck.

    For complete step-by-step guidance, including how to prep, sand, stain, and apply clear coats (especially on veneer tops), follow this detailed guide: Guitar Finishing 101: The Highlighted Grain & Stain Finish.

    For specific techniques and finish styles, also see:

    2. Hardware Installation

    This section walks you through installing the hardware after your finish is fully cured.

    a. Installing the Neck

    •  Place the neck into the pocket and confirm a snug, centered fit.
    • Check scale length: Measure from the nut to 12th fret, then double that distance — this is where the center of the saddle should land (between string holes #3 and #4).
    • Use a steel ruler to align the saddle with the 12th fret dot inlay.
    • When you’re confident in the alignment, screw the neck into place using the neck plate, screws, and cushion.

    b. Installing Tuners

    • Insert each tuner into the back of the headstock.
    • Add washers and bushings, then tighten nuts by hand.
    • Align the tuners (use a steel ruler across the top).
    • Mark pilot holes, pre-drill, and install screws.

    c. Installing the Bridge & Piezo Pickup

    • Align the bridge placement using scale length measurements.

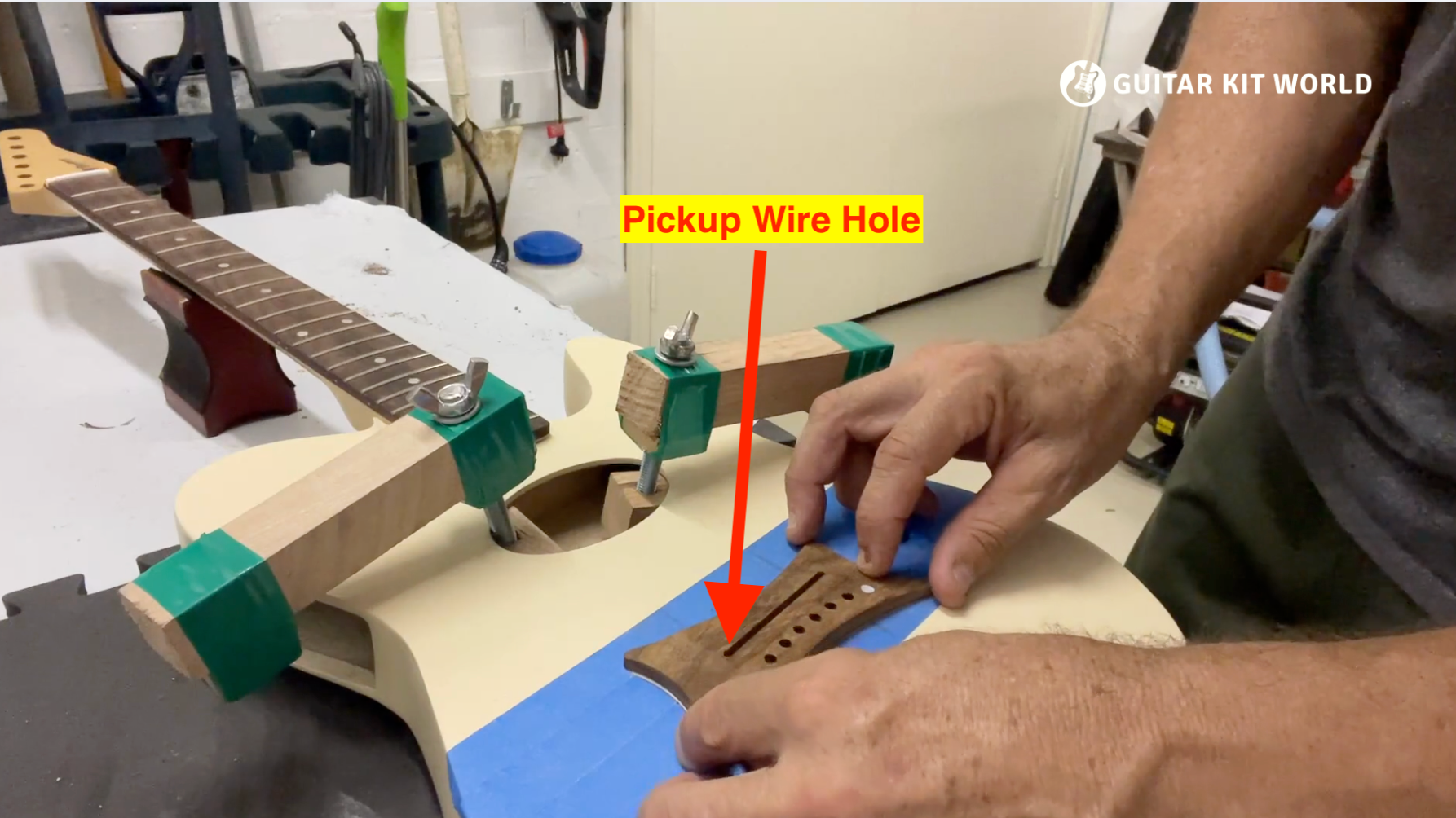

    • Route the piezo pickup wire through the pre-drilled hole into the body cavity.
    • Once aligned, mark pilot holes for the bridge and install it using screws provided.
    • Do not overtighten, as this can crack the finish or damage the top.

    d. Installing the Strap Buttons

    • Rear button goes at the center of the lower bout.
    • Front strap button can go on the upper horn or neck heel, based on your preference.
    • Mark pilot holes, drill carefully, and screw in.

    f. Installing the Equalizer Panel

    • Align the equalizer control panel with the routed cavity.
    • Carefully route all wires through as shown in the wiring diagram (covered in Section C above).
    • Screw in the panel using small screws supplied.

    3. Installing the Electronics

    Your kit features a Piezo Pickup + Master Volume + 4-Band Equalizer system. Good news — the system is pre-wired and plug-and-play, so there’s no soldering needed.

    Components Overview:

    • Piezo Pickup – mounted under the saddle.
    • 4-Band EQ Module – includes Volume and EQ sliders.
    • Output Jack – connects your guitar to an amplifier.
    • 9V Battery Compartment – powers the preamp/EQ.

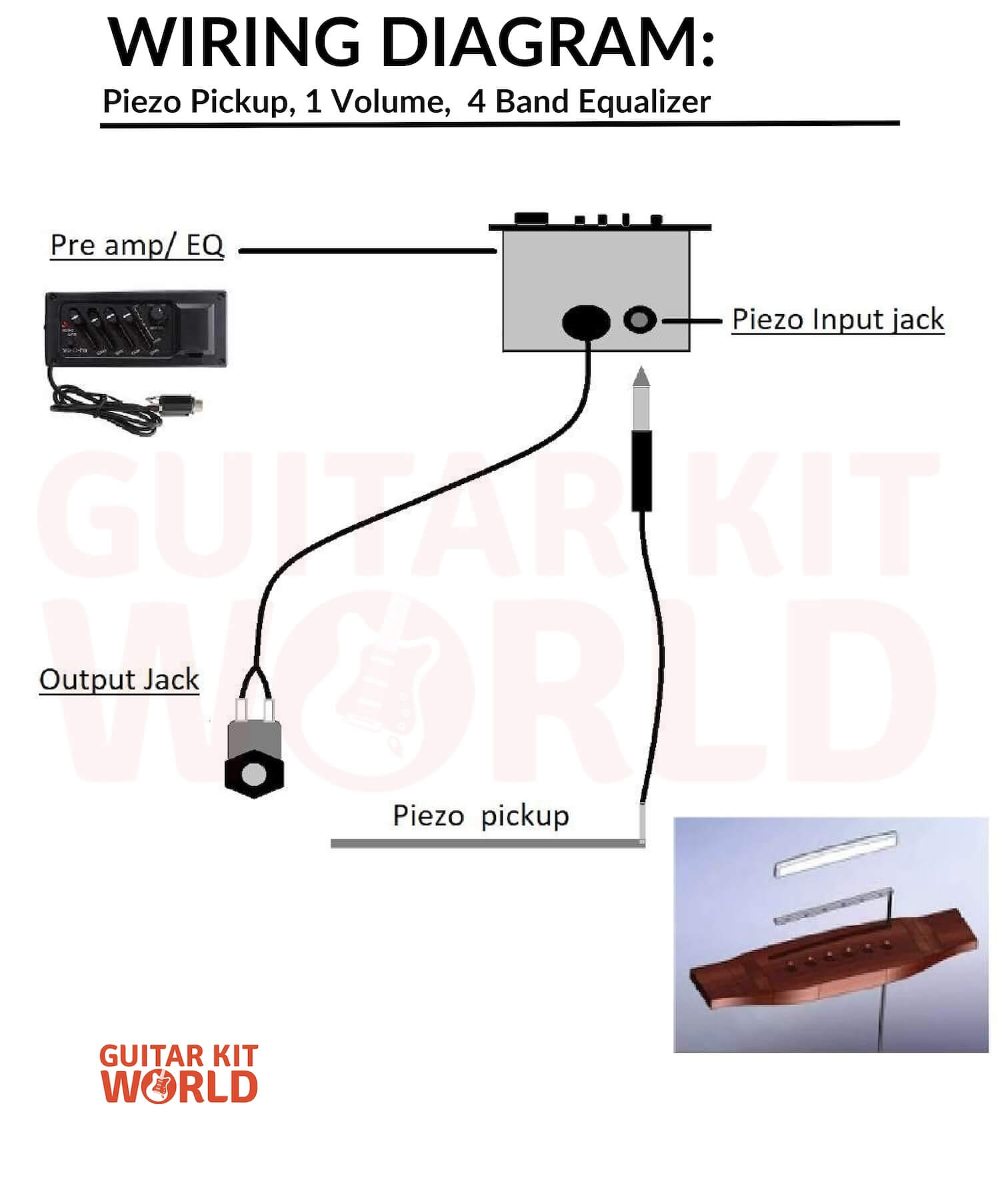

    Wiring Diagram:

    Refer to the image below or download PDF wiring diagram here: Wiring Diagram (PDF)

    Installation Steps:

     1. Mount the EQ module on the side of the body.

    • Fit the EQ module into the side cavity.
    • Secure with screws provided.
    • Do not overtighten — this can crack the finish.

     2. Insert the 9V Battery

    • Place inside the compartment.
    • Test fit now to ensure easy battery access later.

     3. Connect the piezo wire to the EQ input.

    • Thread the piezo pickup wire through the pre-drilled hole from the bridge to inside the body.
    • Plug it into the labeled Piezo Input Jack on the EQ module.

     4. Attach the volume knob and confirm it’s wired to EQ output.

    • Mount the jack securely into its routed cavity.
    • Connect the EQ module’s output wire to the jack (already attached in most kits).

     5. Test by plugging into an amp and adjusting EQ sliders.

    • Plug the guitar into an amp.
    • Lightly tap the saddle area and adjust EQ sliders.
    • If you hear sound, you’re good to go.

    No soldering required — plug-and-play.

    EQ won’t work unless a 9V battery is installed and a cable is plugged into the output jack (activates circuit).

    4. Final Assembly & Setup

    Once your hardware and electronics are installed, it’s time to fine-tune your guitar for playability and tone. This includes adjusting the neck, string height, and intonation.

    Install Your Strings

    Use a fresh set of acoustic guitar strings.

    Install them one at a time, threading through the bridge and tuners.

    Tune to concert pitch (E A D G B E) before proceeding.

    Adjust the Neck Relief

    You may not need to make any adjustments, but if needed:

    • Use the included hex key to access the truss rod at the headstock.
    • To add relief (loosen truss rod): turn counter-clockwise.
    • To flatten neck (tighten truss rod): turn clockwise.
    • Only adjust 1/8–1/4 turn at a time, then retune and re-check.

    Hold down the first and last fret and tap around the 7th–9th fret. You should see a slight gap (~0.25mm). No gap = too flat.

    Check and Adjust String Action

    “Action” refers to string height above the fretboard:

    • Measure string height at the 12th fret using a ruler or feeler gauge.
    • A good starting point:
      • Low E (6th string): ~2.5mm
      • High E (1st string): ~2.0mm
    • If action feels too high, you can sand the bottom of the saddle slightly to lower it.

    Be sure to sand evenly and test often. Removing too much will make it buzz.

    Intonation Check (Acoustic)

    Acoustic guitars don’t have adjustable saddles like electrics, but you can still:

    • Check 12th fret note vs. harmonic.
    • If notes are consistently sharp or flat, reposition the saddle slightly or check if it’s fully seated in the slot.

    For significant intonation issues, consult a tech or luthier.

    Electronics Test

    Once strings are on and tuned:

    • Plug into an acoustic amp.
    • Tap on the saddle to confirm piezo pickup works.
    • Test the volume and all 4 EQ bands (Low, Mid, High, Presence).
    • Check for unwanted hum, buzz, or cutouts.

    Troubleshooting

    No sound output?

    Check battery and cable connection. Ensure piezo is seated flat under saddle.

    Strings buzzing or action too high?

    Adjust truss rod or lower the saddle.

    Bridge placement feels wrong?

    Re-check your 12th fret measurement and centerline.
