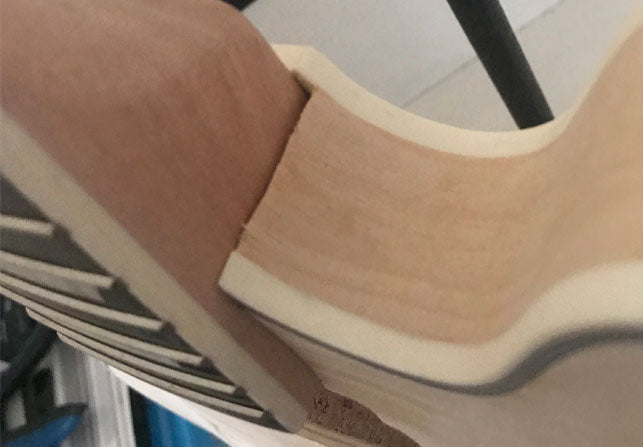

A loose-fitting neck pocket is one of the most common setup issues in DIY guitar kits —especially after seasonal humidity changes. The good news: it’s usually straightforward to diagnose and fix, and you can end up with a tighter, more resonant instrument than before.
Below is a comprehensive, shop-tested guide that covers why it happens, how to confirm what you’re seeing, and multiple repair paths (with pros/cons) for bolt-on and set-neck guitars.
a. Humidity & wood movement. When relative humidity drops, wood loses moisture and contracts. Bodies (and neck heels) can shrink at different rates, loosening the fit.
b. Factory tolerances. Production pockets are cut to fit a range of necks. Minor variance + wood movement = wiggle.
c. Finish stack. If a finish is applied to either surface, thickness changes over time can alter the fit.
d. Wear and tear. Frequent neck removals on bolt-ons can compress fibers at the pocket walls.
Why it matters: Besides looking off, a sloppy pocket reduces sustain: string energy can’t transfer efficiently if the neck and body don’t couple tightly.
a. Neck heel wiggles side-to-side in the pocket.
b. Visible gaps along one or both pocket walls.
c. Strings don’t run evenly along fretboard edges (neck appears shifted).
d. Pickguard/pickup/bridge alignment looks skewed relative to the centerline.
Learn more from here: Luthier Tools for DIY Guitar Kits
1. Acclimate the kit to your workspace for 24–48 hours (longer if it arrived from a very different climate).
2. Find/mark the centerline on the body and neck (masking tape + pencil).
3. Quick geometry check:
Tip: String up just the two E-strings during test fits; they’re perfect visual “rails” for alignment.
Use side veneer shims for lateral fit and bottom shims for angle.
If the neck is solid mechanically but you see small gaps:
For either bolt-on or set-neck: Use a bottom shim on the pocket floor (tapered if needed).
Bottom shims change angle (tilt), not side-to-side play. For looseness, fix the walls, not the floor.
Centerline: With both E-strings on, spacing from string to fretboard edge should be symmetrical along the entire neck.
Scale length: Nut to 12th fret doubled should land near the bridge saddle travel range (bass side a bit farther).
Neck angle: Straightedge down the frets should pass just over the bridge saddles with adjustment room.
Hardware fit: Pickguard and pickup rings should seat without being forced; if they don’t, re-check alignment before drilling.
Learn more: How to check the neck alignment and neck angle
Gluing shims to the neck: Always glue to the pocket (body cavity) so the neck remains removable.
Single-side shim for a big gap: This shifts the centerline. Prefer balanced shims; if you must correct an off-center pocket, account for it intentionally with test-stringing.
Over-clamping: You can bow veneer into the pocket; use flat cauls and just enough pressure.
Skipping dry fits: Dry-fit early and often—especially before drilling pilot holes.
Using filler as structure: Fillers are cosmetic, not structural. They won’t stop wiggle. Depending on the extent of the loose neck fit, the safest option is to use a veneer (aka shim) matching the wood the guitar body is built from or if unable to source matching timber using a hardwood veneer e.g. maple.
Keep the instrument in 40–55% Relative Humidity (RH) where possible.
Use case humidifiers/desiccants seasonally.
Let new parts acclimate before final fitting and drilling.
Learn more about humidity management in detail here: Why does humidity affect guitars?
Q: The gap is only ~0.2 mm but I still feel wiggle.
A: Two ultra-thin maple veneers (one per side) usually do it. Aim for a press-fit that needs gentle hand pressure.
Q: The fit is tight but the strings still drift to the bass-side edge.
A: Your neck is angled laterally. Loosen, realign using the two E-strings as guides, tighten again. If it won’t stay, revisit shim thickness symmetry.
Q: Can I use business cards/tape as shims?
A: For temporary test-fitting, sure. For a permanent fix, use hardwood veneer for tone, stability, and longevity.
Q: Will shims hurt tone?
A: Properly fitted hardwood shims improve contact and usually help sustain compared with a loose pocket.
