Understanding every part of your guitar is the single best foundation for building, playing, and maintaining the instrument. At Guitar Kit World, we walk builders through assembly every day, and the questions always start the same way: "What does this part do?" This guide answers every one of those questions, with builder tips you will not find in a textbook.
An electric guitar has three main sections: the headstock, the neck, and the body. The headstock holds the tuning machines and nut. The neck includes the fretboard, frets, truss rod, and inlay markers. The body houses the pickups, electronics (volume and tone controls, pickup selector switch), bridge, output jack, and pickguard. Each component affects how the guitar sounds, plays, and feels. This guide breaks down every part of an electric guitar with labeled diagrams and explains what each part does, from a builder's perspective.
If you have ever looked at an electric guitar and wondered what all those knobs, switches, and metal pieces actually do, you are in the right place. After assembling hundreds of guitar kits and walking thousands of builders through their first projects, we have learned that understanding your instrument's anatomy is the single best foundation for playing, maintaining, or building a guitar. Every section below includes hands-on builder tips that you will not find in a typical guitar textbook.
The Three Main Sections of an Electric Guitar
Every electric guitar, regardless of shape or style, divides into three sections: the headstock, the neck, and the body. These three sections work together to produce sound, but they connect in different ways depending on the guitar's design.

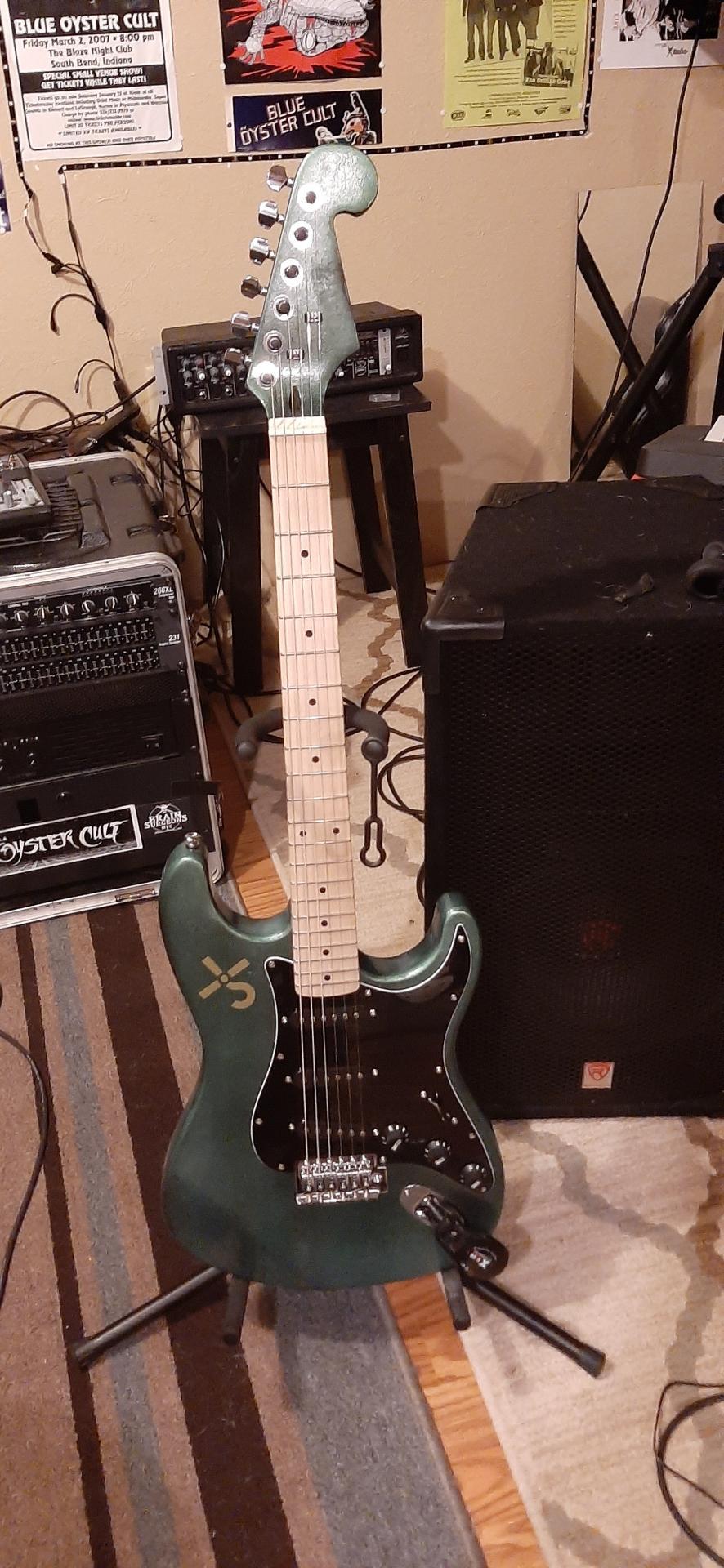

Built by a Guitar Kit World community member.
Bolt-on neck construction uses screws to fasten the neck to the body. This is the most common method on double cutaway and T-style guitars. Bolt-on necks are easy to replace or adjust, and they tend to produce a bright, snappy tone.
Set-neck construction uses glue to permanently bond the neck to the body. This method is common on single cutaway designs. Set-neck joints transfer vibration more efficiently, which contributes to warmer sustain. If you want to explore this construction style, take a look at our set-neck guitar kits.
Neck-through construction uses a single piece of wood (or laminated blank) that runs the full length of the instrument, with body "wings" glued to the sides. This design offers the greatest sustain and the smoothest heel access but is the most involved to build. For a deeper dive, read our guides on how to install a bolt-on neck and how to glue a set neck.
Builder Tip: The neck joint type determines a large part of your build process. Bolt-on builds are the most forgiving for first-time builders because you can remove and reseat the neck if alignment is off. Set-neck builds require more precision since glue joints are permanent. Check your kit's neck pocket fit before you commit to any adhesive.
Headstock Parts
The headstock is the section at the very top of the guitar, above the nut. It anchors the strings and houses the tuning hardware.
Tuning Machines (Tuners / Machine Heads)
Tuning machines are geared mechanisms mounted on the headstock that raise or lower string pitch by winding or unwinding each string around a post.
Most electric guitars have six tuning machines, one per string. They come in two main styles. Open-gear tuners expose the internal gears, which makes them lighter and gives them a vintage look. Sealed (die-cast) tuners enclose the gears in a housing, reducing maintenance and improving longevity. A third option, locking tuners, clamps strings in place for faster string changes and improved tuning stability.
Builder Tip: When you install tuning machines, always check that the posts align perfectly with the string path from the nut. Misaligned tuners create lateral string tension that pulls the guitar out of tune. Dry-fit everything before drilling pilot holes.
Nut
The nut is a small slotted bar that sits at the junction of the headstock and the neck, spacing the strings evenly and setting their height above the first fret.
Nut material has a noticeable effect on tone and tuning stability. Plastic nuts are the most common on budget instruments. Bone and TUSQ (a synthetic bone alternative) offer better tonal transfer and a slicker surface that reduces string binding. Graphite nuts are especially popular for tremolo-equipped guitars because they allow strings to slide freely. Brass nuts add brightness and sustain.
Nut width also matters for playability. A wider nut spaces strings farther apart, which is easier for fingerpicking. A narrower nut feels faster for lead playing. Learn more in our guide on how to replace a guitar nut.
Builder Tip: The nut is one of the highest-impact upgrades you can make on a guitar kit. If your kit ships with a plastic nut, swapping it for bone or graphite is an affordable change that improves tuning stability and open-string tone immediately.
String Trees / Retainers
String trees (also called string retainers) are small metal guides screwed into the headstock face between the nut and the tuning posts. Their purpose is to increase the downward angle of the strings over the nut, which keeps the strings firmly seated in their slots.
Not all guitars need string trees. Guitars with angled headstocks (common on single cutaway designs) naturally create enough downward pressure. Flat headstocks (common on double cutaway bolt-on designs) often use string trees on the thinner strings to prevent buzzing and slipping.
Truss Rod Access
Some headstocks feature a small cover plate that provides access to the truss rod adjustment point. (The truss rod itself runs inside the neck; we cover it in detail below.) On other designs, the truss rod adjusts from the body end of the neck or through the sound hole on semi-hollow instruments.
Neck Parts
The neck is where your fretting hand does all its work. It contains more functional components than most beginners expect.
Neck Wood and Construction
Common neck woods include maple and mahogany. Maple necks are stiff and bright-sounding, with a fast, smooth feel. Mahogany necks are slightly warmer and have a bit more mass. Some builders prefer roasted maple neck guitar kits because the roasting process removes moisture, increasing stability and adding a rich caramel color.
Fretboard (Fingerboard)
The fretboard (also called the fingerboard) is a thin slab of wood glued to the front of the neck where you press the strings down to produce notes.
Common fretboard woods each bring something different:
Engineered ebony: a sustainable alternative that looks and feels like natural ebony. Learn more about engineered ebony fretboards.
The wood you choose affects both the feel under your fingers and the upper harmonic character of the instrument. A raw rosewood board feels slightly textured and warm, while a finished maple board feels glassy and slick.
Frets
Frets are thin metal strips embedded in the fretboard at precise intervals. When you press a string down behind a fret, the fret shortens the vibrating length of the string, producing a specific note.
Fret size affects playability. Small (vintage) frets sit close to the fretboard and require more finger pressure. Medium frets balance comfort and precision. Jumbo frets make bending easier and require less pressure, but they can cause intonation issues if you press too hard.
Fret material matters for longevity. Nickel silver (the standard) is soft enough to be friendly to strings but wears over time. Stainless steel frets last significantly longer and feel smoother, though they are harder to work with during setup.
If you are experiencing unwanted buzzing, our guide on how to fix fret buzz walks through the most common causes and solutions.
Builder Tip: Before you apply any finish to the neck, run a straightedge along the frets to check for high spots. Uneven frets cause buzz and dead notes that no amount of setup adjustment will fix. A few minutes of checking now saves hours of frustration later.
Fret Markers / Inlays
Fret markers (inlays) are decorative position indicators set into the fretboard surface at standard positions: 3rd, 5th, 7th, 9th, 12th (usually a double dot), 15th, 17th, 19th, 21st, and 24th frets.
Materials range from simple plastic dots to mother of pearl, abalone, and acrylic. Side dots along the edge of the fretboard serve the same navigational purpose and are what most players actually look at while playing.
Truss Rod
The truss rod is a metal rod embedded inside the neck that counteracts the pull of string tension and allows you to adjust the curvature (relief) of the neck.
Single-action truss rods bend the neck in one direction (counteracting string pull). Dual-action truss rods can flex the neck both ways, offering more adjustment range. Most modern guitar kits include dual-action truss rods.
Builder Tip: After stringing up a new build, let the neck settle for 24 hours before making truss rod adjustments. Necks need time to respond to string tension. When you do adjust, turn the truss rod nut no more than a quarter turn at a time. Over-tightening can crack the neck or strip the nut.
Neck Profile / Shape
Neck profile describes the cross-sectional shape of the back of the neck, which determines how the neck feels in your hand.
Common profiles include:
C profile: the most popular. Comfortable for most hand sizes.
D profile: flatter back, feels thinner. Favored for fast playing.
U profile: thick and rounded. Comfortable for large hands and thumb-over styles.
V profile: a pronounced ridge along the back. Less common, vintage feel.
Slim taper: a thin, flat profile for speed playing.
Choosing the right profile is largely a matter of hand size and playing style. Our guide on guitar kit neck profiles and hand sizes breaks down which profile fits which type of player.
Body Parts
The body is the largest section of the guitar and houses most of the hardware and electronics.
Body Wood (Tonewood)
Tonewood refers to the wood species used for the guitar body, each contributing its own tonal characteristics.
Common body woods:
Basswood: lightweight, neutral tone. A popular choice for versatile instruments.
Alder: balanced across all frequencies with a slight midrange emphasis. The standard for many double cutaway bolt-on designs. See alder guitar kits.
Ash: bright highs and strong lows with a pronounced grain pattern.
Mahogany: warm, rich low-mids and strong sustain. Common in single cutaway and set-neck instruments. Read about different varieties of mahogany.
Maple: bright, hard, and heavy. Often used as a body cap over mahogany.
Wood choice contributes to the overall tonal character of the instrument, but pickups, strings, and electronics have a more immediate and measurable impact on the sound that comes out of your amplifier. Do not overthink tonewood. Pick a wood you like the feel and look of, and let the pickups do the heavy lifting.
Body Types
Solid body guitars are made from a single piece (or glued pieces) of solid wood. This is the most common type of electric guitar body, and it offers the widest range of tones depending on pickups and electronics. Explore solid body guitar kits.
Semi-hollow body guitars have resonant chambers routed into the body with a solid center block running underneath the pickups. The chambers add acoustic resonance and a warm, airy quality to the tone while the center block reduces feedback at high volumes. Browse semi-hollow body guitar kits.
Hollow body guitars are fully hollow, producing the warmest and most resonant tone. They are traditional choices for jazz and blues. However, they are prone to feedback at high gain settings. See hollow body guitar kits.
Body Shape and Cutaways
Electric guitar bodies come in many shapes, and most feature at least one cutaway, a scoop cut from the body where it meets the neck, that gives your hand access to higher frets.
Single cutaway designs (one scoop on the treble side) are classic and elegant. They sacrifice some upper fret access in exchange for more body mass, which can contribute to sustain.
Double cutaway designs (scoops on both the treble and bass sides) offer the most comfortable access to the highest frets. These are the most popular shapes for players who use the entire fretboard.
Other shapes include angular/geometric bodies, V-shape bodies, and offset bodies, each with their own ergonomic and tonal properties.
Pickups and Electronics
This is where the guitar's voice lives. The electronics section converts string vibration into an electrical signal and gives you control over how that signal is shaped before it reaches your amplifier.
Pickups
Pickups are electromagnetic transducers that sense string vibration and convert it into an electrical signal. A pickup consists of a magnet (or magnets) wrapped with thousands of turns of thin copper wire. When a steel string vibrates above the magnetic field, it creates a fluctuating current in the wire coils that mirrors the string's vibration pattern.
The three main pickup types:
Single-coil pickups use one coil of wire. They produce a bright, clear, articulate tone with plenty of high-end detail. The tradeoff: single-coils are susceptible to electromagnetic interference, which produces a characteristic 60-cycle hum.
Humbucker pickups use two coils wired in opposite polarity to cancel electromagnetic interference (hum), hence the name. Humbuckers produce a thicker, warmer, higher-output tone compared to single-coils. They are the standard for rock, metal, and jazz.
P90 pickups are single-coil pickups with a wider, flatter coil design. They produce a gritty, midrange-heavy tone that sits between a traditional single-coil and a humbucker. P90s are popular for blues, punk, and indie rock.
There is also a distinction between active and passive pickups. Passive pickups are the traditional type, powered only by the string's vibration over the magnets. Active pickups include a built-in preamp powered by a battery, which boosts output and often produces a tighter, more compressed tone. Read our detailed comparison of active vs. passive pickups.
The pickup selector switch lets you choose which pickup (or combination of pickups) is active at any time.
A 3-way switch offers three positions: neck pickup only, both pickups together, and bridge pickup only. This is the standard on guitars with two pickups.
A 5-way switch is common on guitars with three single-coil pickups. The five positions are: neck only, neck + middle, middle only, middle + bridge, and bridge only. The "in-between" positions (neck + middle, middle + bridge) produce the characteristic quack tone favored in funk and country music.
Volume and Tone Controls
Volume pots (potentiometers) control the output level of the signal. Turning the knob down reduces the signal strength going to your amplifier. Many players keep their volume knob slightly below maximum to clean up their tone, then roll it up for more drive.
Tone pots work by rolling off high frequencies. At 10 (fully open), the full frequency range passes through. As you turn the tone knob down, a capacitor bleeds high frequencies to ground, producing a progressively warmer, darker sound.
Common configurations include 1 volume/1 tone (1V1T), common on T-style guitars, and 2 volume/2 tone (2V2T), common on single cutaway dual-humbucker guitars, where each pickup has its own dedicated volume and tone control.
Wiring and Output Jack
The output jack is where you plug in your cable. It is the final stop in the guitar's internal signal chain.
The signal path inside an electric guitar flows like this: strings vibrate over pickups, the pickups generate a signal, the signal passes through the selector switch to the active pickup(s), then through the volume and tone controls, and finally out the output jack to your cable and amplifier.
Most guitar kits come with pre-wired electronics (pickups, switch, pots, and jack soldered to a wiring harness) or require hand-wiring. Pre-wired harnesses simplify the build significantly. If your kit needs wiring from scratch, our electric guitar wiring diagrams and guitar wiring guide will walk you through the process. You can also learn how to install pre-wired pickups.
Builder Tip: If you have never soldered before, a pre-wired harness is the safest option for your first build. Wiring mistakes are the number one source of "my guitar doesn't make sound" issues. If you want to learn to solder, practice on scrap wire before touching your kit's electronics.
Bridge and Hardware
The bridge section anchors the strings to the body and plays a major role in tuning stability, intonation, and sustain.
Bridge
The bridge is the hardware assembly on the guitar body that anchors the strings and sets their height (action) and length (intonation) at the body end.
Fixed bridges do not allow pitch bending via a tremolo arm.
Hardtail bridges mount directly to the body with individual saddles for each string. Simple, stable, great sustain.
Tune-o-matic bridges sit on two height-adjustable posts with a separate tailpiece behind them. Common on single cutaway set-neck guitars.
Wraparound bridges combine the bridge and tailpiece into a single unit. Simple and effective, though intonation adjustment is limited on older designs.
Tremolo bridges allow pitch bending by tilting the bridge with a tremolo arm (whammy bar).
Vintage-style tremolo pivots on six screws and allows subtle vibrato. Common on double cutaway bolt-on instruments.
Double-locking tremolo (floating tremolo) clamps strings at both the nut and bridge, allowing extreme pitch bends while maintaining tuning stability.
Builder Tip: Bridge placement is one of the most critical measurements on a guitar. The distance from the nut to the bridge saddles determines the instrument's scale length, and even a small error will cause intonation problems across the entire fretboard. Most kit bodies come with pre-drilled bridge mounting holes. Always verify their placement with a ruler before committing.
Tailpiece
A tailpiece is a separate hardware component that anchors the strings behind the bridge on guitars where the bridge itself does not serve as the string anchor.
A stop tailpiece is a bar mounted on two posts behind a tune-o-matic bridge. The strings thread through the tailpiece and run forward over the bridge saddles.
A trapeze tailpiece is common on hollow body guitars. It attaches to the end of the body and suspends the strings above the bridge.
String-through-body designs route the strings through holes in the body, anchoring them at the back. This is common on hardtail and some tremolo setups, and it can increase sustain by coupling the string vibration more directly to the body.
Strap Buttons
Strap buttons are small metal posts that hold your guitar strap. Most electric guitars have two: one at the base (bottom) of the body and one at the heel where the neck meets the body. Standard strap buttons rely on friction alone, while strap locks use a mechanical locking mechanism to prevent accidental drops.
Pickguard
The pickguard is a flat piece of material (usually plastic, available in many colors and layer configurations) mounted to the body surface. Its primary purpose is to protect the body's finish from pick scratches during aggressive strumming.
Some guitar designs do not use pickguards at all. Carved-top single cutaway guitars, for example, often rely on the beauty of the wood grain as a design element and skip the pickguard entirely.
On some body styles, the pickguard also serves as the mounting plate for the pickups, controls, and wiring. This makes the entire electronics assembly removable as one unit, which simplifies building and maintenance.
Strings
Guitar strings are the vibrating element that produces the sound. Electric guitar strings are made from magnetically responsive metal (typically steel cores wrapped in nickel-plated steel, pure nickel, or stainless steel) so that the pickups can sense their vibration.
String gauge (thickness) affects both playability and tone:
Light gauge (typically .009-.042): easier to bend, less finger pressure required, brighter tone, lower tension.
Medium gauge (typically .010-.046): a balance of playability and fullness. The most popular starting point.
Heavy gauge (typically .011-.050 or higher): more volume, fuller tone, tighter feel, more finger strength required.
Understanding individual parts is useful. Understanding how they interact is where real knowledge begins.
Built by Mark G.
Here is the signal flow of an electric guitar, from vibration to amplifier:
You pluck a string. The string vibrates at a specific frequency determined by its length (set by the frets and bridge), tension (set by the tuning machines), and mass (set by the string gauge).
The pickups sense the vibration. The magnetic field around the pickup interacts with the vibrating steel string, generating a small alternating current that mirrors the string's movement.
The electronics shape the signal. The pickup selector chooses which pickup(s) feed the signal. The volume pot controls amplitude. The tone pot rolls off high frequencies.
The output jack sends the signal to your amp. The cable carries the shaped electrical signal to your amplifier, which boosts it and pushes it through a speaker.
Every part in the chain contributes. The body wood and construction affect resonance and sustain. The bridge affects how vibration transfers from the strings to the body. The nut and frets determine intonation accuracy. The pickups define the core voice. The electronics give you real-time control.
When you build a guitar from a kit, you handle every single one of these components yourself. You see how they fit together. You understand why a loose bridge saddle kills sustain, or why a poorly cut nut slot makes a string buzz. That hands-on understanding is something no amount of reading can fully replace.
Why Knowing Guitar Parts Matters for Kit Builders
If you are reading this as someone interested in building a guitar, understanding the anatomy of the instrument is not optional. It is foundational.
Better upgrade decisions. When you know that the nut, pickups, and tuning machines have the biggest impact on tone and playability, you know exactly where to invest your upgrade budget instead of spending blindly.
Easier troubleshooting. A guitar that buzzes on the first two frets but plays clean everywhere else? That is a nut problem, not a truss rod problem. Knowing the parts helps you diagnose issues quickly.
Deeper connection to your instrument. There is a difference between playing a guitar and understanding a guitar. Building one bridges that gap permanently.
Now that you know every part of an electric guitar, the best way to truly understand them is to build one yourself. Our kits come with everything you need: body, neck, hardware, pickups, electronics, and a step-by-step assembly guide.
The three main sections of an electric guitar are the headstock, the neck, and the body. The headstock holds the tuning machines and nut. The neck contains the fretboard, frets, and truss rod. The body houses the pickups, electronics, bridge, and output jack.
What is the most important part of an electric guitar?
The pickups have the biggest impact on an electric guitar's tone because they are responsible for converting string vibration into the electrical signal your amplifier receives. However, every part contributes to the overall sound and playability. A great pickup in a poorly built guitar will still sound disappointing.
How many parts does an electric guitar have?
A typical electric guitar has 20 to 25 distinct parts, depending on the design. Guitars with tremolo systems, locking nuts, or complex switching have more components. Simpler designs with fixed bridges and straightforward wiring have fewer.
What is the difference between single-coil and humbucker pickups?
Single-coil pickups use one coil of wire and produce a bright, clear tone, but they are susceptible to electromagnetic hum. Humbucker pickups use two coils wired in opposite polarity to cancel that hum, producing a thicker, warmer tone with higher output.
What wood is best for an electric guitar body?
There is no single best wood. It depends on the tone you are after. Alder produces a balanced tone across all frequencies. Mahogany delivers warm low-mids and sustain. Ash is bright with pronounced highs and lows. Basswood is neutral and lightweight, making it a versatile foundation for any pickup configuration.
Can you upgrade parts on a guitar kit?
Yes. The most common and impactful upgrades on kit guitars are pickups, tuning machines, the nut, bridge hardware, and electronics (pots, capacitors, wiring). These components have the biggest effect on tone and playability, and most can be swapped without modifying the guitar body or neck.
What is a truss rod and why does it matter?
A truss rod is a metal rod embedded inside the guitar neck that counteracts the forward pull of string tension. By adjusting the truss rod, you control the amount of relief (forward curve) in the neck, which directly affects string height and playability. Every electric guitar with a standard neck has one.
What tools do I need to build a guitar kit?
Most guitar kit builds require screwdrivers, Allen wrenches, a soldering iron (for wiring), sandpaper, wood finish supplies, and a tuner. Some builders also use clamps, a straightedge for fret leveling, and a drill for pilot holes. The specifics depend on your kit's construction type and how much finishing work you plan to do.
